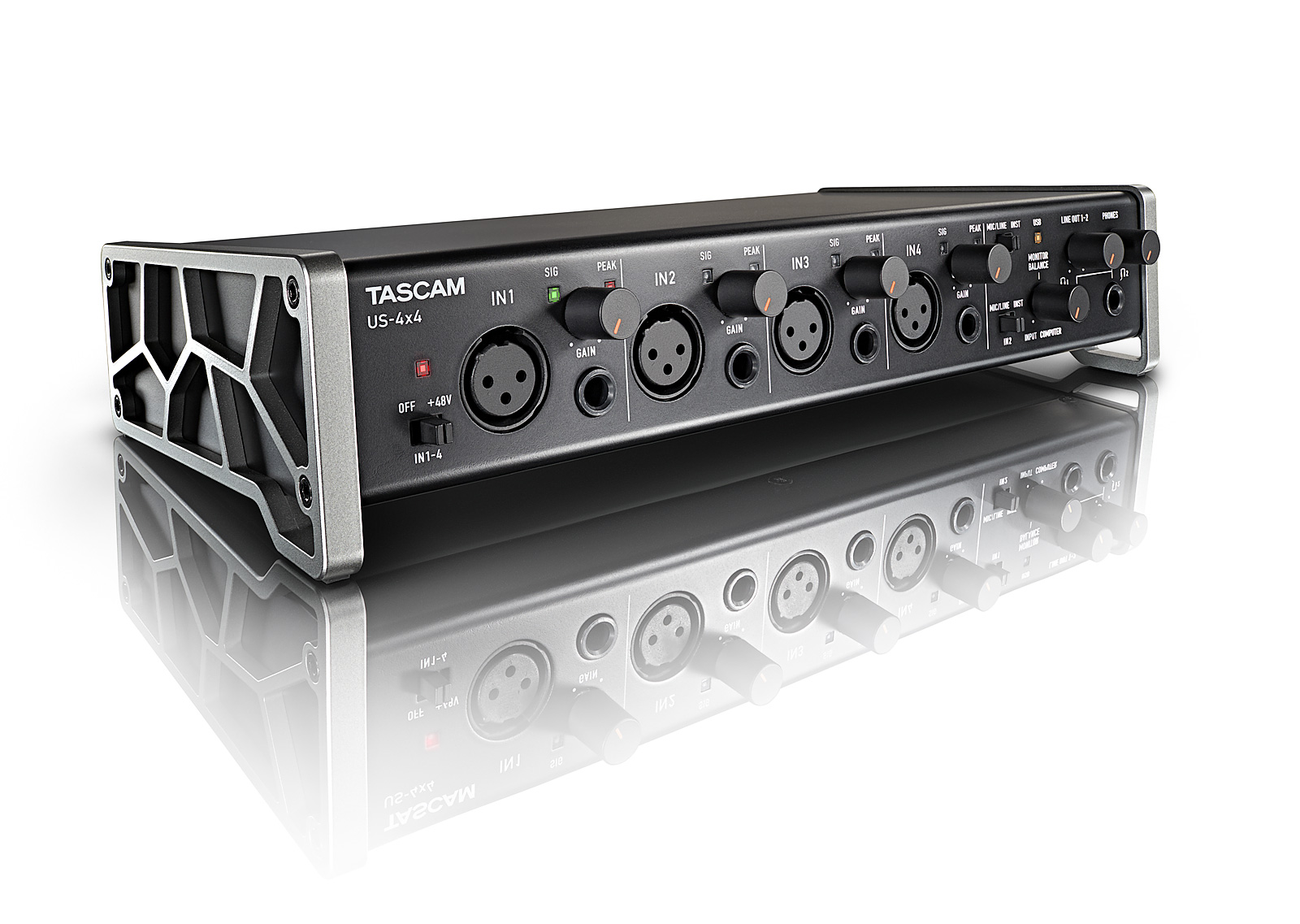

TASCAM US-4X4 USB Audio Interface

ออดิโออินเตอร์เฟส TASCAM US4X4 Up to 24-bit/96kHz Resolution, Combo XLR/TRS Mic/Line Inputs, Angled Aluminum Design, Independent Line & Headphone Out Control, 2x Headphone Jacks with 45mW Amplifiers, NE5532 Op Amps

Featuring 4 of Tascam’s Ultra-HDDA low noise microphone/line inputs, the US-4×4 4-Channel USB Audio Interface from Tascam is capable of tracking 4 channels simultaneously in up to 24-bit/96kHz resolution to your compatible Mac, Windows, or iOS device. The device features an angled aluminum design allowing for easy visibility when placed on a desktop.

FEATURES:

Functions common to both the US-2×2 and US-4×4

• Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
• NE5532 op-amps used at the audio input and output stages
• Up to 96kHz/24-bit recording
• Support for Windows and Mac OS X operating systems
• USB 2.0 computer connection
• Connect with iPads and other iOS devices
• +48V phantom power for all inputs
• Two switchable high-impedance inputs
• Microphone preamp gain range of 57 dB
• Direct monitoring function for zero-latency monitoring
• Tough all-metal casing for durability
• Angled design provides excellent usability on a desktop
• Balanced analog TRS output jacks suitable for connection to powered monitors
• Standard TRS headphones output jack
• Separate controls for line and headphones output volumes
• MIDI input and output
• Output sources can be selected in the setting panel
• Input sound monitoring can be set to stereo or mono
• Input muting function eliminates noise from unused inputs
• USB class compliant 2.0 support
• License cards included for SONAR X3 LE/Ableton Live Lite 9
• Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band）

Unique features for the US-2×2

• Two Ultra-HDDA mic preamplifiers
• Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power
• Two TRS analog balanced outputs
• 18mW/ch headphone output
• USB bus-powered for mobile recording
• Optional AC adaptor available for use with iOS devices

Unique features for the US-4×4

• Four Ultra-HDDA mic preamplifiers
• Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
• Four TRS analog balanced outputs
• Two headphone outputs – each with 45mW/ch output power
• Dedicated AC adapter is included
