Key Features

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
• Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality

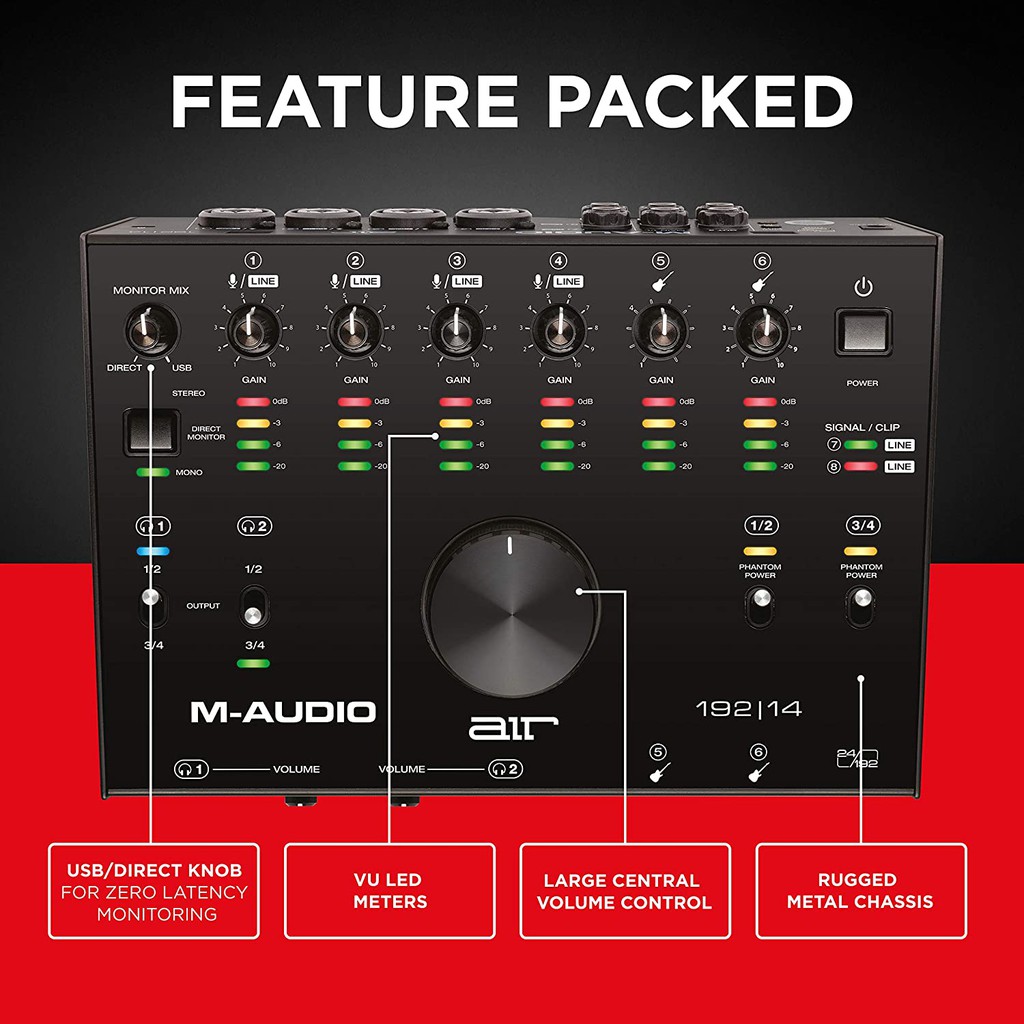

• VU LED meters for dialing in the perfect level
• (4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
• MIDI input/output for connecting virtually any external MIDI gear
• Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
• (2) ¼” headphone outputs with independent source and level controls
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal
*Round trip latency is dependent on buffer settings, and computer hardware

Downloads

• AIR 192-14 User Guide v1.1

What’s In The Box

• AIR 192|14
• USB-C-to-USB-C Cable
• USB-C-to-USB-A Cable
• (2) 1/8" (3.5 mm) to MIDI Adapters
• Software Download Cards
• User Guide
• Safety and Warranty Manual

• Mic Inputs 1-4 (balanced XLR)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.2 dB)
  DYNAMIC RANGE	113 dB (A-weighted)
  THD+N	0.003%
  PREAMP EIN	-137 dBu (40 Ω source, A-weighted) -129 dBu (150 Ω source, unweighted)
  MAX INPUT LEVEL	+14 dBu
  GAIN RANGE	62 dB




  Line Inputs 1-4 (balanced 1/4" [6.35 mm] TRS)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.1 dB)
  DYNAMIC RANGE	113 dB (A-weighted)
  THD+N	0.001% (1 kHz, +4 dBu, -1 dBFS)
  MAX INPUT LEVEL	+30 dBu
  GAIN RANGE	61 dB




  Inst Inputs 5-6 (unbalanced 1/4" [6.35 mm] TS)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.1 dB)
  DYNAMIC RANGE	110 dB (A-weighted)
  THD+N	0.001% (1 kHz, +4 dBu, -1 dBFS)
  MAX INPUT LEVEL	+16 dBu
  INPUT IMPEDANCE	~1 MΩ
  GAIN RANGE	59 dB




  Fixed Line Inputs 7–8 (balanced 1/4" TRS)
  DYNAMIC RANGE	113 dB (A-weighted)
  THD+N	0.001% (1 kHz, +4 dBu, -1 dBFS)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.1 dB)
  MAX INPUT LEVEL	+17 dBu




  Line Outputs 1–2 (balanced 1/4" TRS)
  DYNAMIC RANGE	112 dB (A-weighted)
  THD+N	0.002% (1 kHz, -1 dBFS)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.2 dB)
  MAXIMUM OUTPUT LEVEL	+17 dBu




  Fixed Line Outputs 3–4 (balanced 1/4" TRS)
  DYNAMIC RANGE	113 dB (A-weighted)
  THD+N	0.002% (1 kHz, -1 dBFS)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.2 dB)
  MAXIMUM OUTPUT LEVEL	+17 dBu




  Headphone Outputs (stereo 1/4")
  DYNAMIC RANGE	111 dB (A-weighted, 32 Ω load)
  THD+N	0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load)
  FREQUENCY RESPONSE	20 Hz – 20 kHz (+/-0.2 dB)
  MAXIMUM POWER DELIVERED	160mW (<1% THD, 32 Ω load)
  MAXIMUM OUTPUT LEVEL	+15 dBu (unloaded)
  IMPEDANCE RANGE	32 Ω – 600 Ω




  General
  OTHER CONNECTORS	(1) 1/8” (3.5 mm) MIDI input (1) 1/8” (3.5 mm) MIDI output (1) USB Type-C port (1) Power adapter input
  POWER ADAPTER	12 VAC, 2 A, center-positive (included)
  DIMENSIONS (WIDTH X DEPTH X HEIGHT)	10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm)
  WEIGHT	3.9 lbs. 1.8 kg
