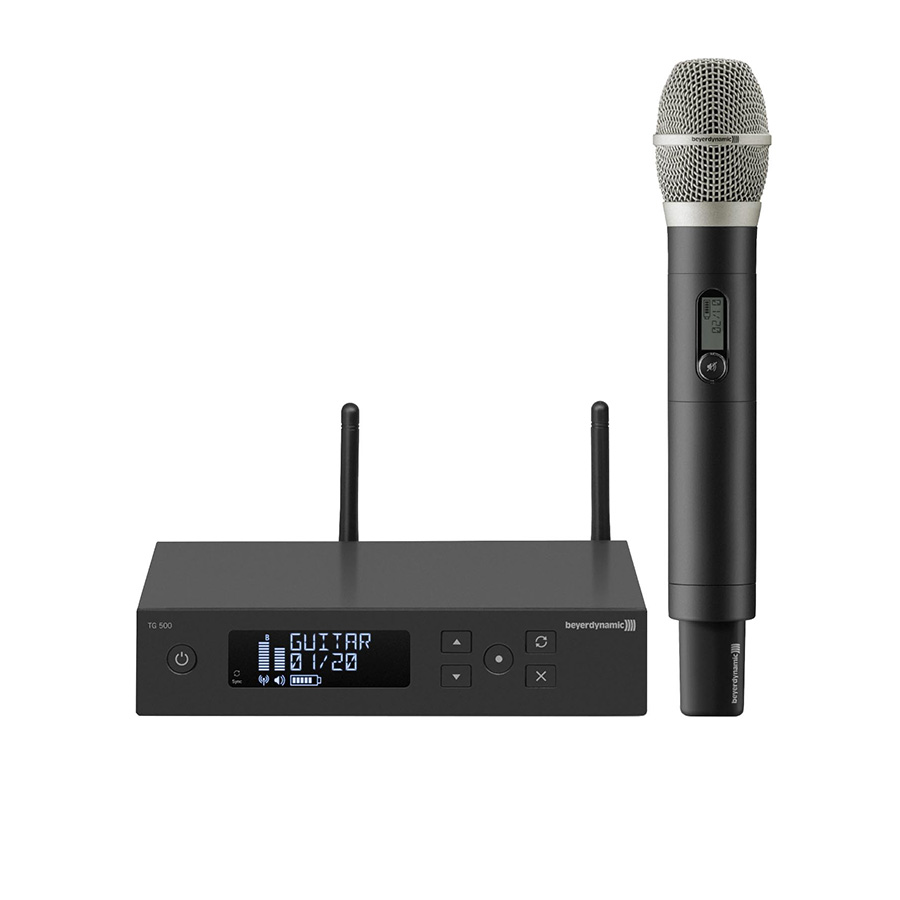

TG 500 Vocal Set with dynamic handheld TG 500H-D

The beyerdynamic TG 500 system is available in five sets, each of which contains an individual receiver and two removable antennas. The TG 550 Vocal Set is supplied with the dynamic TG 500H-D handheld transmitter with a TG V50 capsule (dynamic capsule, cardioid) and is perfect for singing, whereas the TG 556 Vocal Set comes with a TG 500H-C handheld transmitter with a TG V56 capsule (condenser capsule, cardioid), making it the perfect solution for presentations. There are matching microphone clamps for both handheld transmitters. The TG L58 clip-on microphone (condenser, omnidirectional) from the TG 558 Presenter Set can be worn in an inconspicuous position during lectures, while the TG 534 Headworn Set with a TG H34 neckworn microphone (condenser, super cardioid) is the perfect choice for theatre productions. Electric and bass guitars can be miked using the WA-CGI instrument cable (6.35 mm mono jack), which is part of the TG 510 Instrument Set.

With an operating range of up to 120 metres, the beyerdynamic TG 500 allows for substantially greater freedom than comparable systems. The switching bandwidth is up to 40 MHz, and when all four frequency bands (518–548 MHz, 606–636 MHz, 794–832 MHz and 1.780–1.810 MHz) are used, up to 72 channels (18 compatible frequencies per band) can be operated simultaneously, thus making the TG 500 system suitable even for larger installations.

What's Included:
• TG 500SR (Single receiver)
• 500 H-D (Handheld transmitter with dynamic TG V50 capsule)
• Microphone clamp
• 1 pair detachable antennas
• Batteries
• Power supply
• Rack mount kit

TG 500SR Receiver Features:
• Intuitive, user-friendly menu structure
• Up to 40 MHz switching bandwidth
• Infrared interface for transmitting settings from the receiver to the transmitter
• Backlit LC display
• Status display (battery, frequency, name)
• Scan function
• BNC antenna outputs
• XLR and jack output (balanced)
• Detachable BNC antennas
• Pilot tone function

TG 500H-D Handheld Features:
• Outstandingly pleasant touch and feel and programmable power lock
• Dynamic TG V50 capsule
• Infra-Red synchronization for relaying settings from receiver to transmitter
• LC-Display
• 2-level Gain- Switch
• Programmable Mute- Button
• Battery charge level display
• Battery life time approx. 10 hours with 2 x 1,5 V AA batteries
• Up to 120 m working range
• Synchronization of receiver and transmitter below one second
• Charging Contacts for WA-CD
• Removable belt clips for horizontal & vertical mounting
• Pilot tone function
• Included batteries and bag
