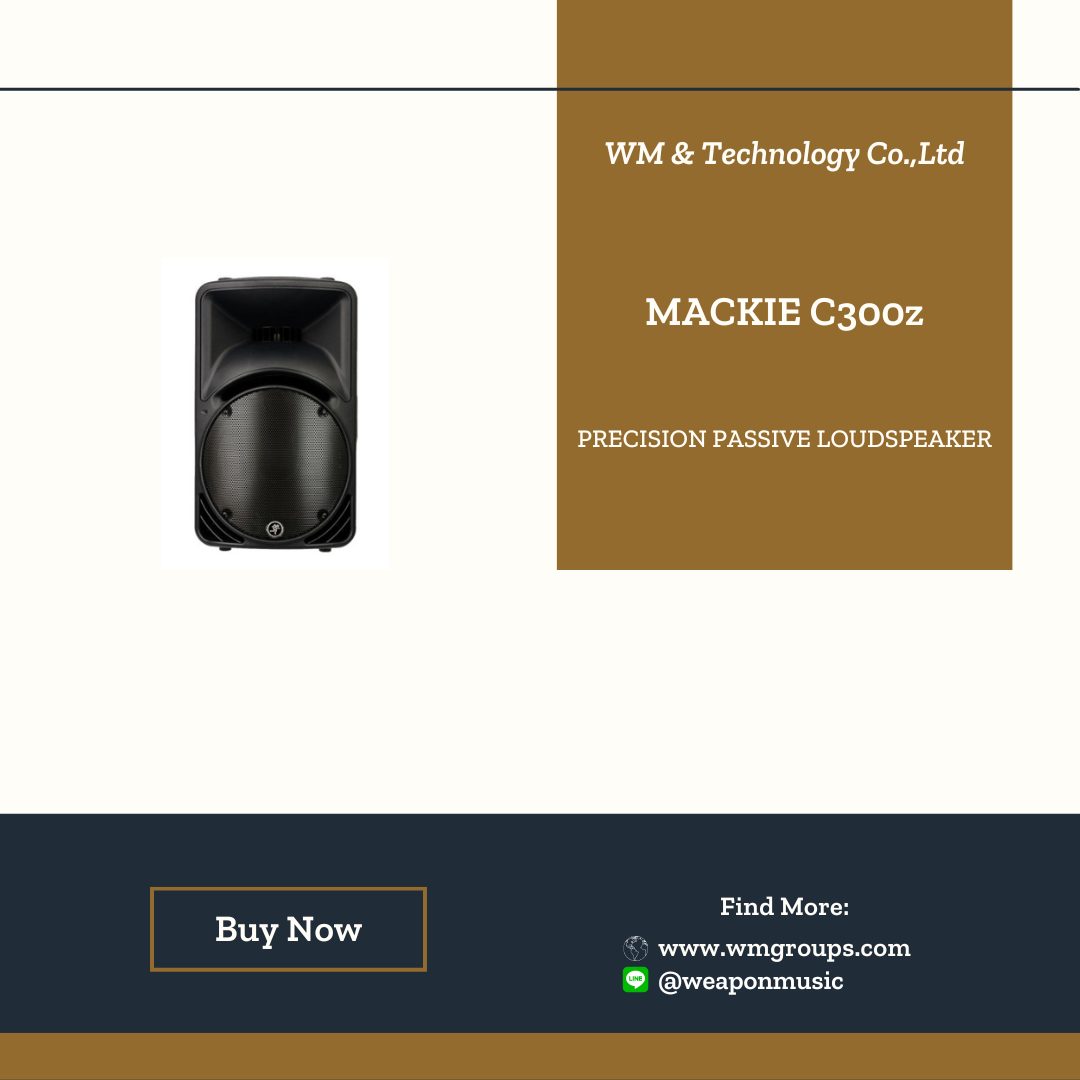

C Series

Experience the same Mackie sound quality heard from the legendary SRM Series Powered speakers in an incredibly versatile passive design. C-Series loudspeakers are built with rugged road worthy molded cabinets, custom designed high-output drivers and a precision tuned asymmetrical crossover for natural, high-fidelity sound.

• 2-way portable Precision Passive loudspeaker system

• 750W / 300W RMS peak power handling at 8 Ohm

• 12” long-throw low-frequency transducer with 3” voice coil

• High-output 1.75″ titanium compression driver

• Ultra-wide, smooth dispersion via multi-cell horn aperture and constant directivity horn

• Integrated Low impedance Compensated Crossover (LICC) with full driver protection

• Lightweight for ultimate portability (46 lb / 20.9 kg)

• Asymmetrical trapezoidal cabinet for floor monitor positioning

• Stand / Pole-mountable

• Flyable via ten M10 rigging points using the optional eyeboit kit

  SPEC :

  Acoustic Performance

  • Frequency Response (-3 dB) 55 Hz-18 kHz
  • Frequency Range (-10 dB) 45 Hz-20 kHz
  • Max SPL long-term 123 dB 6 1 m
  • Low-Frequency Crossover Type 24 dB I octave,time offset corrected
  • High-Frequency Crossover Type 24 dB / octave

  Audio

  • Input / Thru Connector Type SpeakonTM-style NL-4 jack 1/4′ TS jack
  • Input Impedance 8 9
  • Power HandlingRMS 300 wattsMusic 500 wattsPeak 750 watts

  Low-Frequency Transducer

  • Diameter 12 in / 300 mm
  • Voice Coll Diameter 3 in / 75 mm
  • Magnet Material Ferrite

  High-Frequency Transducer

  • Diaphragm Diameter 1.75 in / 44.5 mm
  • Diaphragm Material Heat treated titanium
  • Horn Exit Diameter 1 in / 24.5 mm

  Horn Design

  • Type Conical and Exponential
  • MouthSize 12in/305mm(W)x7ln/178mm(H)
  • Horizontal Coverage 90° (1 kHz – 20 kHz)
  • Vertical Coverage 45° (2.8 kHz – 20 kHz)

  Safety Features

  • Over-Excursion Protection Second-order high-pass filter
  • Driver Protection Dynamic protection for compression driver

  Construction Features

  • Basic Design Asymmetrical Trapezoidal
  • Material Polypropylene
  • Finish Black, textured finish
  • Handles One on each side, one on top
  • Grille Perforated metal with weather-resistant coating
  • Operating Temperature Range -10° C to 45° C 14° F to 113° F

  Physical Properties (packaged product)

  • Height 26.5 in / 673 mm
  • Width 16.8 in / 427 mm
  • Depth 15.5 in / 394 mm
  • Shipping Weight 52.0 lb / 23.6 kg

  Physical Properties (product)

  • Height 26.1 in I 663 mm
  • Width 16.0 in I 406 mm
  • Depth 14.8 in / 376 mm
  • Net Weight 46.0 lb I 20.9 kg

  Mounting Methods

  Floor mount, pole mount, or fly via 10 integrated M10 threaded inserts (two each located on each side, top, bottom and rear of enclosure)

  Options

  • PA-A1 forged shoulder eyeboit kit (4 x M10 x 1.5 mm x 20 mm) P/N 0031943
  • SPM200 Loudspeaker Pole Mount P/N 2035170-01

  Orderinglnformation

  C3002 Passive, 2-way Loudspeaker P/N 2033793

  03002 Passive, 2-way Loudspeaker, CN P/N 2033793-05
