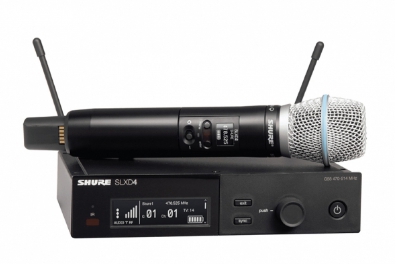

SLXD4 DIGITAL WIRELESS RECEIVER

Dimensions (H × W × D) 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)

Weight 1.8 lb (816 g) without antennas

Housing Galvanized Steel

Power Requirements
15 VDC @ 600 mA Supplied by external power supply (tip positive)

RF INPUT

Spurious Rejection >75 dB Typical

Connector Type BNC

Impedance 50 Ω

AUDIO OUTPUT

Gain Adjustment Range

• –18 to +42 dB in 1 dB steps

Configuration

• 1/4″ (6.35 mm): Balanced (Tip=audio +, Ring=audio – Sleeve=ground)
• XLR: Balanced (1=ground, 2=audio +, 3=audio –)

Impedance

• 1/4″ (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
• XLR (line): 400 Ω (200 Ω Unbalanced)
• XLR (mic): 150 Ω

Full Scale Output

• 1/4″ (6.35 mm): +15 dBV differentially (+9 dBV single)
• XLR (LINE setting): +15 dBV
• XLR (MIC setting): –15 dBV

Mic/Line Switch

• 30 dB pad

Phantom Power Protection

• 1/4″ (6.35 mm): Yes

XLR: Yes

NETWORKING

Network Interface Single

Port Ethernet 10/100 Mbps

Network Addressing Capability

DHCP or Manual IP address

Maximum Cable Length

100 m (328 ft)

SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER

Battery Type Rechargeable Li-Ion or 1.5 V AA batteries

Dimensions (Dia. × L) 1.46 × 6.93 in (37.1 × 176 mm)

Weight 5.2 oz. (147 g)

Housing Aluminum

AUDIO INPUT

Configuration Aluminum

Maximum Input Level
8.2 dBV (2.57 Vrms, 7.27 Vpp)

Note: Dependent on Microphone Type

RF OUTPUT

Antenna Type Integrated Single-Band Helical

Occupied Bandwidth <200 kHz

Modulation Type Shure Propietary Digital

Power 1 mW/10 mW Varies by region. See Frequency Range and Output Power Table.
