20-channel Digital Mixer with Touchscreen Interface, 12 x Mic Inputs, 4 x Mic/Line Combo Inputs, 2 x Stereo Line Inputs, Built-in FX, and iPad Remote Control via Wi-Fi

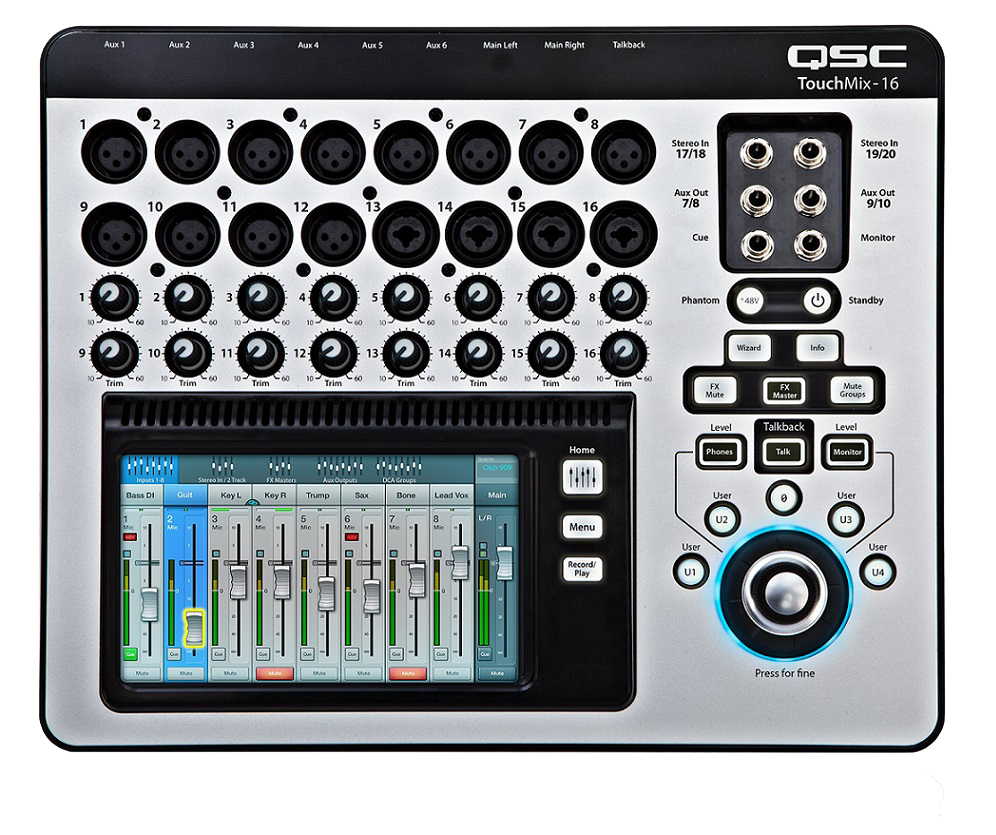

The TouchMix-16 Compact Digital Mixer with Touchscreen from QSC is a 20-input digital mixer that features 16 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-16's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.

The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.

Features :

• 20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
• Dedicated talkback mic input
• Stereo Main L/R outputs (XLR)
• Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
• The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
• Mono auxiliaries may be linked for stereo use.
• Superb sound quality
• Class-A microphone pre-amps
• 32-bit floating point processing
• 24-bit AD & DA convertors
• Input channels are fully-featured:
• Four-band full parametric EQ
• Variable high-cut and low-cut filters
• Gate
• Compressor (with de-esser)
• Main and auxiliary outputs feature:
• 1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries)
• Limiter
• Delay
• Notch filters
• Four professional quality stereo DSP effects. Choose from:
• Two types of reverb
• Mono delay
• Stereo delay
• Chorus
• Pitch-change
• A pitch correct processor is assignable to any input channel.
• Eight DCA and eight mute groups.
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
• Great results and easy to use
• Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
• Wizards assist with input gain adjustment and effects selection and routing.
• On board Info system gives you instant access to the user manual.
• Save your own channel presets and complete mixer scenes to internal memory or USB device.
• Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
• Complete mixer remote control via free iPad® App.
• Monitor control via iPhone/iPod Touch App.
• Multiple Wi-Fi Connectivity options
• Security Lockout Modes
• USB Wi-Fi interface and carrying case are included.
